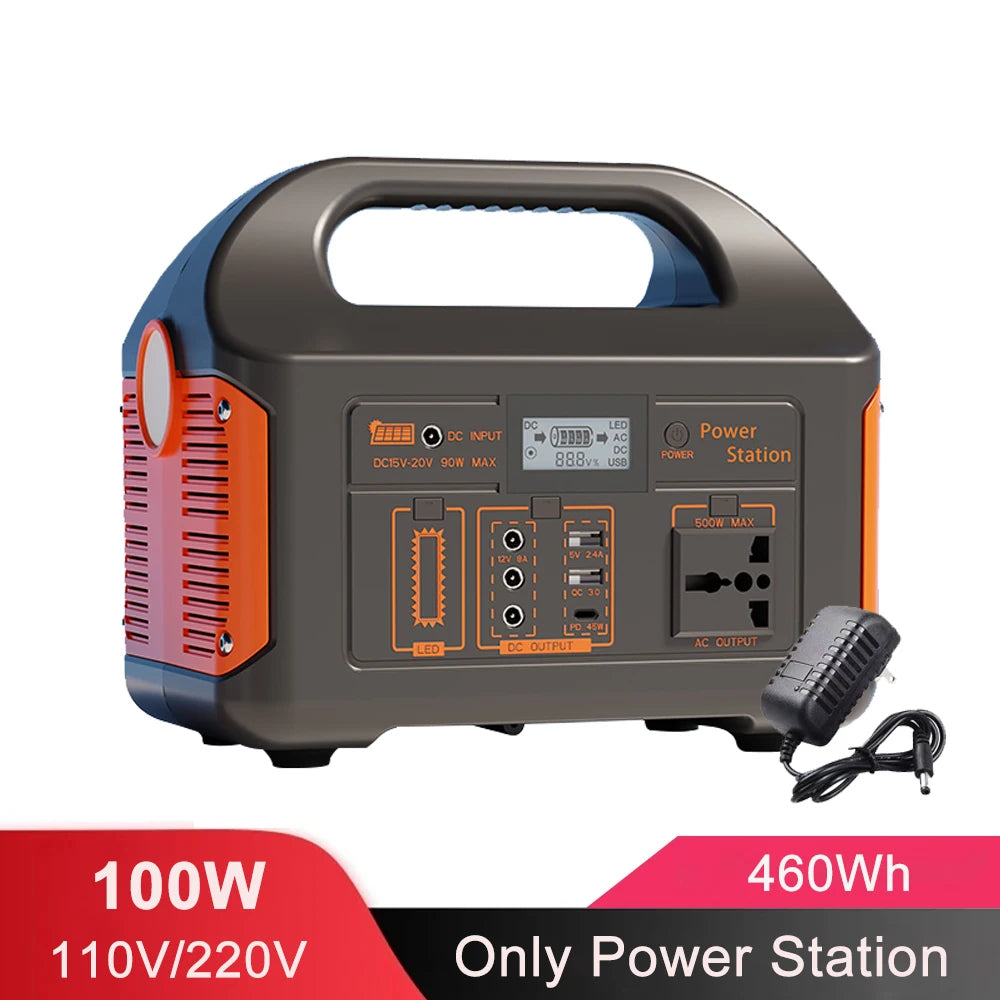

300W 500W Portable Power Station 460Wh Solar Generator 110V 220V Camping Solar Charging Station Emergency Energy Storage Supply
300W 500W Portable Power Station 460Wh Solar Generator 110V 220V Camping Solar Charging Station Emergency Energy Storage Supply
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: TSLWATT
Hign-concerned Chemical: None
Set Type: Charger Sets
Model Number: Portable Power Station
Nominal Capacity: 24000mh
Type: LiFePO4
Certification: FCC
Certification: RoHS
Display screen: Yes
Size: 271*172*228
Rated Power: 100W/300W/500W
Output Waveform: Pure Sine Wave
AC Output Voltage: 220V/110V±15%
AC Output Frequency: 50Hz/60Hz ±2Hz
Charging Interface: External Charger Port and DC5521*1
DC Output Voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
Battery Type: LiFePO4
Battery Capacity: 76.8wH/230Wh/460Wh
Feature 1: Outdoor power bank
Feature 2: portable power station
Feature 3: camping power supply
Feature 4: solar charging station
Rated Power |
100W |
300W |
500W |
Output Waveform |
Modified Sine Wave |
Pure Sine Wave |
Pure Sine Wave |
AC Output Voltage |
220V/110V±15% |
||
AC Output Frequency |
50Hz/60Hz ±2Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
1 USB output QC18W; 1 PD output maximum 20W; |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
LED Light States |
LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states |
||
Battery Type |
LiFePO4 |
||
Battery Capacity |
12.8V 76.8Wh |
12.8V 230WHh |
12.8V460WH |
Solar Panel Specifications |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 90W (Optional) |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value6A |
AC Charger Specifications |
15V1A |
14.6V 2A |
16V 5A |
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
||
LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
||
Heat Dissipation |
Automatic cooling |
||
Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
||
Operating Environment Temperature |
-10～40℃ |
||
Operating Environment Humidity |
10～85% |
||
Storage Environment Humidity |
5～90% |
||
Net Weight(kg) |
≈1.76kg |
≈2.9kg |
≈5.36 |
Product Size D*W*H(mm) |
253*84*214 |
211*160*196 |
271*172*228 |
Specification:
Rated power: 100W/300W/500W
Output waveform: Pure Sine Wave
AC output voltage: 220V ±15%
AC output frequency: 50Hz/60Hz ±2Hz
Conversion efficiency: maximum value>90%
Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
AC output socket: universal seat
DC output voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states
LiFePO4 battery:
2000+ cycles : approximately equal to 10 years of full capacity use
Safety: Short circuit is not easy to cause fire and explosion
Durability: Long battery life
High temperature resistance: the peak electric heating reaches 350-500°C
Environmental protection: generally considered to be free of heavy metals and less polluted than rare metals
3 charging methods: indoor and outdoor flexible energy replenishment, MAINS charging, car charging, solar charging
Product Features：
1. Large Capacity & Versatile Use: With a substantial 460wh capacity, the portable solar power station caters to a wide array of situations, from outdoor camping and self-driving tours to fulfilling household emergency needs during power outages. Stay powered up anywhere, anytime.
2. High Quality Lithium Iron Phosphate Battery: The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 2000+ charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.
3. Compact and Powerful: Improved over other products on the market, the outdoor camping power bank boasts a smaller volume and lighter weight while maintaining powerful functionality. It can power a variety of electronic devices, making it a convenient and reliable choice for outdoor use.
4. LED Lighting & Diverse Output: The outdoor power supply features LED lighting with four modes: high brightness, half brightness, flashing, and off. It provides a DC5V 2.4A dual USB output and a DC12V3A dual DC5521 output, catering to electronic and outdoor equipment, offering significant convenience.
5. Safe and Efficient: The portable outdoor generator prides itself on safety and efficiency. It provides fast charging and includes multiple safety protections, ensuring reliability and durability for outdoor use.
Package List
100W/300W/500W Power Station*1
Charger (EU/US/UK plug optional)*1
Product Manual*1
